Digital Oscilloscope 100MHz * 2 Analog Bandwidth 1GSa/s Sampling Rate 2 Channels 7'' Benchtop Oscilloscope ,Professional Designed

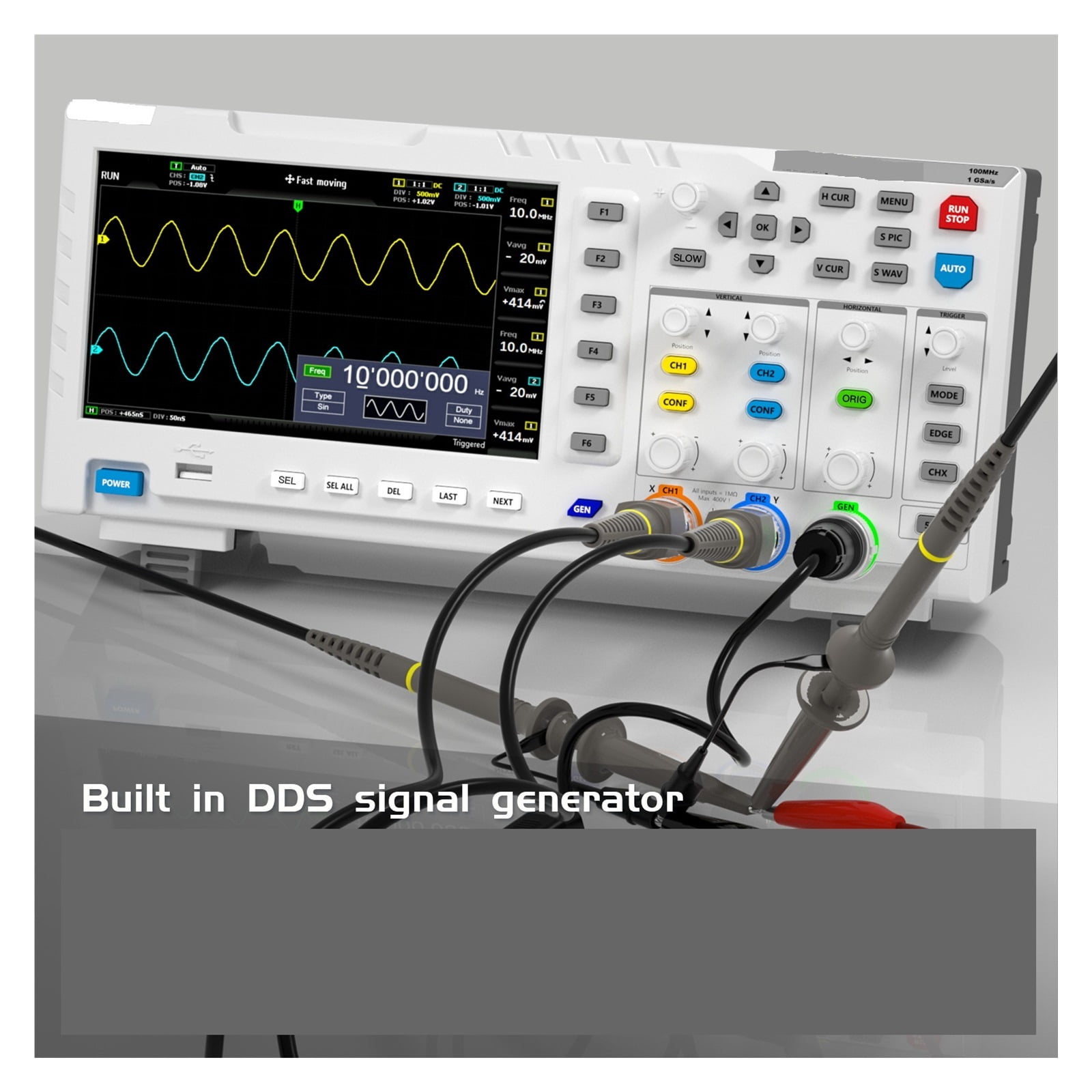

<p>Features</p><p>Fully fit 7-inch 800 * 480 resolution color TFT LCD with bright colors and high contrast.</p><p>Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period.</p><p>The Built-in signal generator, support 12 kinds of function signal.</p><p>Capture output signal function, which can store up to 1000 capture signals.</p><p>Targeted high intelligent decoding algorithm, tand intelligent anti-burn function, 1X Can withstand up to 400V withstand voltage.</p><p>With 100MHz * 2 ana-log bandwidth and @ 1GSa/s sampling rate(1X = 5MHz, 10X = 100MHz).</p><p>Cursor measurement function: it is convenient to manually measure the period and frequency and voltage.</p><p>Complete triggering function (single, normal, automatic), and at any time, the waveform display (pause function) is frozen.</p><p>Equipped with One-button AUTO, and one-button waveform storage and screenshot function.</p><p></p><p>Specifications</p><p>Input resistance: 1M</p><p>ADC precision: 8bits</p><p>Coupling mode: AC/DC</p><p>Trigger mode: Single, Normal, Auto</p><p>Trigger edge: Rising edge/Falling edge</p><p>Extension ports: USB picture export</p><p>Material: ABS</p><p>Ana-log bandwidth: 100MHz * 2</p><p>Number of channels: 2 channels</p><p>Maximum real-time sampling rate: 1GSa/s</p><p>Horizontal time base range: 50S/div ~ 10nS/div</p><p>Storage depth: 240Kbit</p><p></p><p>Digital oscilloscope 2 channels 100mhz,electronic oscilloscope electronic,digital oscilloscope</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.
• Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page-turning, deletion, and waveform zooming in, zooming out, moving, etc.
• It is equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, convenient for Graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals.

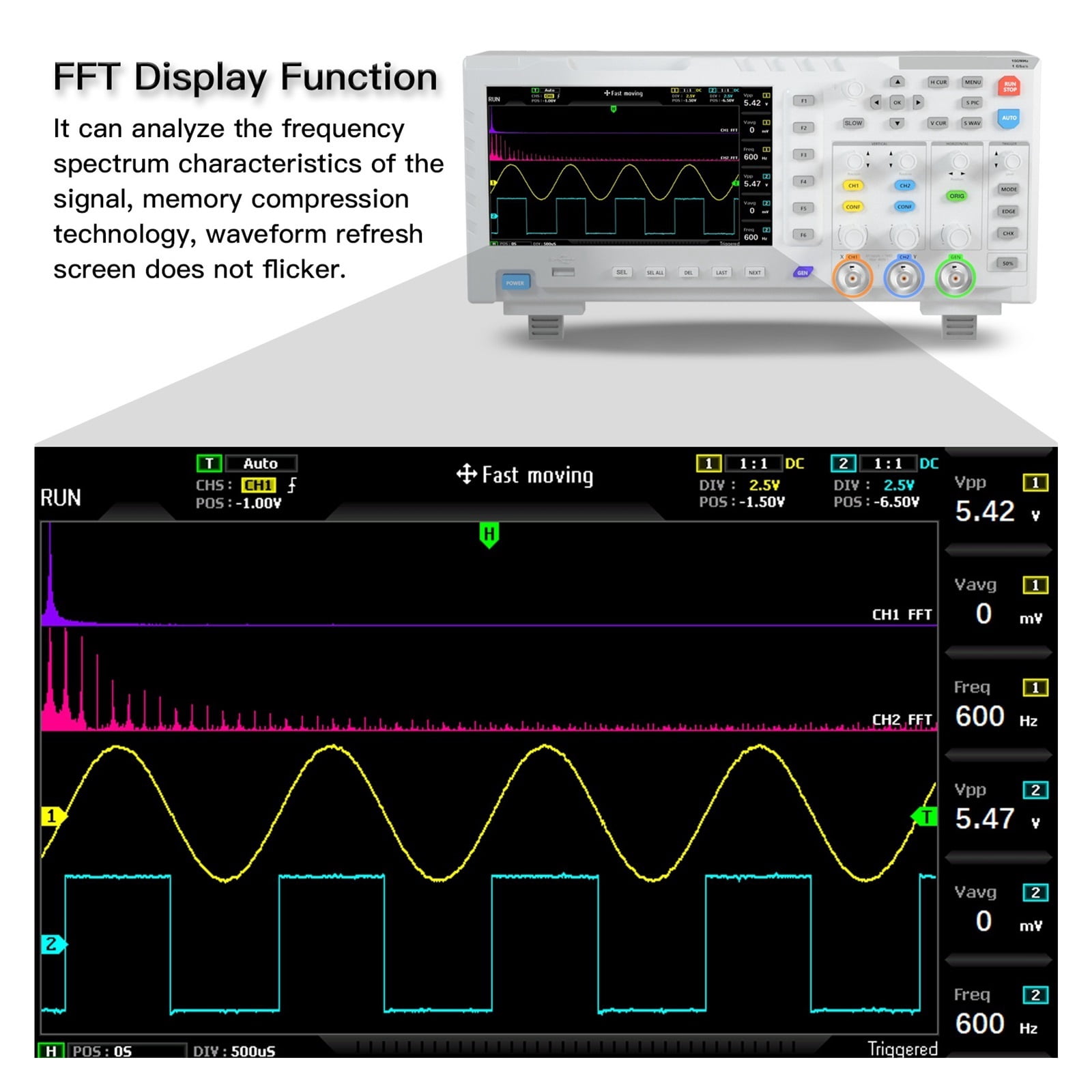

• FFT display function can analyze the spectral characteristics of the signal, memory compression technology, waveform refresh screen does not flicker.
• With the screen brightness adjustment function and background gr-id brightness adjustment function, also easy to carry.
